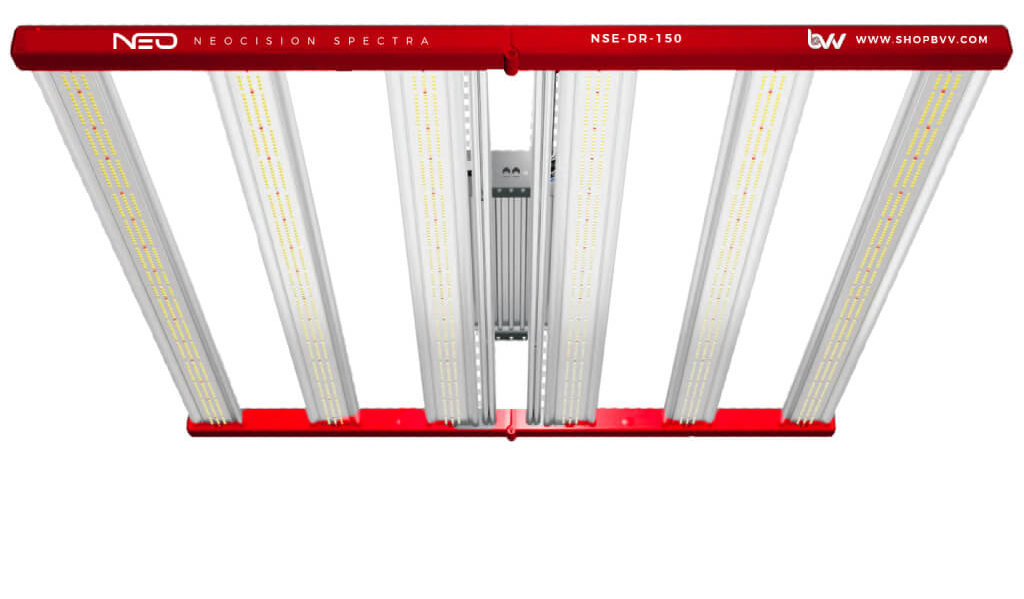

Neocision Spectra Elite
Neocision Spectra Elite LED light fixtures feature a unique spectra mix that helps create stronger plants for nutrient uptake with maximized red for increased photosynthesis. Get increased yields, quality bud formation and high rates of cannabinoid production levels.
We offer two options ideal for your flower room: the Neocision Elite 680W and the Neocision Elite 750W. Learn more about these full spectrum LED fixtures below.
NEOCISION ELITE 680W
Neocision Elite 680 fixtures feature a 20.6% blue spectra and 45.1% red spectra with a peak at 660nm for your flowering plants. This unique spectra mix creates stronger plants for nutrient uptake with maximized red for increased photosynthesis.
Previous image
Next image
- Independently tested efficacy of 2.85 μmol/J
- Industry Leading Horticulture LEDs
- RJ Port for Plug and Play Control Systems
- Folding Design for Fast and Easy Installation
- Leading 660nm LED Count – 150 660nm diodes Per Fixture
- 7 Year Limited Warranty
| SPECTRUM AND EFFICACY | |
|---|---|
| PPF Efficacy: | 2.85 at 240 VAC |
| Photon Flux (µmol/s) (400-700nm): | 1937 |
| Photon Flux Blue (µmol/s) (400-500nm): | 399 |
| Photon Flux Green (µmol/s) (500-600nm): | 665 |
| Photon Flux Red (µmol/s) (600-700nm): | 873 |
| Total Blue/Red – Energy Bands: | 1272 |
| % Blue: | 20.63% |
| % Green: | 34.33% |
| % Red: | 45.04% |
| POWER | |
| Power Consumption: | 680W AC |
| Driver: | Sosen |
| Power Factor: | >0.95 |
| Surge Protection: | 6 KV |
| 208V: | 3.44 A |
| 240V: | 2.98 A |
| 277V: | 2.58A |
| DIMENSIONS | |
| Fixture Size (driver mounted on the fixture): | (L) 43.9” x (W) 43.9” x (H) 3.7” |
| Fixture Size (without driver): | (L) 43.9” x (W) 43.9” x (H) 1.9” |
| Power Supply Dimension: | (L) 25.7” X (W) 4.4” X (H) 2.4” |
| Driver Net Weight: | 10.1 lbs. |
| Fixture Net Weight: | 20.4 lbs. |
| OTHER | |
| Mounting Height | ≥ 12” above canopy |
| Beam Angle | 120° |
| Input Voltage | 200 – 277 VAC |
| Manual Dimming Knob | 0-10 V (100% to 10%, then off) |
| Built In Control Ports | RJ 14 input/output |
| Standard Power Cord (Extensions available) | AWG 18, 6 Foot |
| Standard Plug | 240 VAC – NEMA 6-15P |
| Substitute Plugs (Upon request at order) | 277 VAC, Pigtails |
| Adjustable Height Hanging Kit Included | Yes |
| Fixture and Driver Warranty | 7 Years Limited |
| ETL Safety Certified | Conforms to UL 1598:2021 Ed.5 Certified to CSA C22.2#250.0:2021 Ed.5 *ETL Safety Certified No. 5020070 |
| DLC Listed | Yes |
Previous image
Next image
Looking for additional indoor cultivation lighting solutions? Get in touch with a Surna Cultivation Technologies representative.
Previous image
Next image
Looking for additional indoor cultivation lighting solutions? Get in touch with a Surna Cultivation Technologies representative.
NEOCISION ELITE 750W
Neocision Elite 750 fixtures feature a 21% blue spectra and 44% red spectra with a peak at 660nm for your flowering plants with increased wattage for increased PPF. This unique spectra mix creates stronger plants for nutrient uptake with maximized red for increased photosynthesis.
Previous image
Next image
- Tested efficacy of 2.88 umol/J
- Industry Leading Horticulture LEDs
- RJ Port for Plug and Play Control Systems
- Folding Design for Fast and Easy Installation
- Leading 660nm LED Count – 180 660nm diodes Per Fixture
- 7 Year Limited Warranty
| SPECTRUM AND EFFICACY | |
|---|---|
| PPF Efficacy: | 2.88 (at 240 VAC/750 W AC) |
| Photon Flux (µmol/s) (400-700nm): | 2163 |
| Photon Flux Blue (µmol/s) (400-500nm): | 454 |
| Photon Flux Green (µmol/s) (500-600nm): | 756 |
| Photon Flux Red (µmol/s) (600-700nm): | 952 |
| Total Blue/Red – Energy Bands: | 1406 |
| % Blue: | 21.00% |
| % Green: | 34.97% |
| % Red: | 44.03% |
| POWER | |
| Power Consumption: | 750W AC |
| Driver: | Sosen |
| Power Factor: | > 0.95 |
| Surge Protection: | 6 KV |
| 208V: | 3.80 A |
| 240V: | 3.29 A |
| 277V: | 2.85 A |
| DIMENSIONS | |
| Fixture Size (driver mounted on the fixture): | (L) 43.9” x (W) 43.9” x (H) 3.7” |
| Fixture Size (without driver): | (L) 43.9” x (W) 43.9” x (H) 1.9” |
| Power Supply Dimension: | (L) 25.7” X (W) 4.4” X (H) 2.4” |
| Driver Net Weight: | 10.1 lbs. |
| Fixture Net Weight: | 20.4 lbs. |
| OTHER | |
| Mounting Height | ≥ 12” above canopy |
| Beam Angle | 120° |
| Input Voltage | 200 – 277 VAC |
| Manual Dimming Knob | 0-10 V (100% to 10%, then off) |
| Built In Control Ports | RJ 14 input/output |
| Standard Power Cord (Extensions available) | AWG 18, 6 Foot |
| Standard Plug | 240 VAC – NEMA 6-15P |
| Substitute Plugs (Upon request at order) | 277 VAC, Pigtails |
| Adjustable Height Hanging Kit Included | Yes |
| Fixture and Driver Warranty | 7 Years Limited |
| ETL Safety Certified | Conforms to UL 1598:2021 Ed.5 Certified to CSA C22.2#250.0:2021 Ed.5 *ETL Safety Certified No. 5020070 |
| DLC Listed | Yes |
Looking for additional indoor cultivation lighting solutions? Get in touch with a Surna Cultivation Technologies representative.
